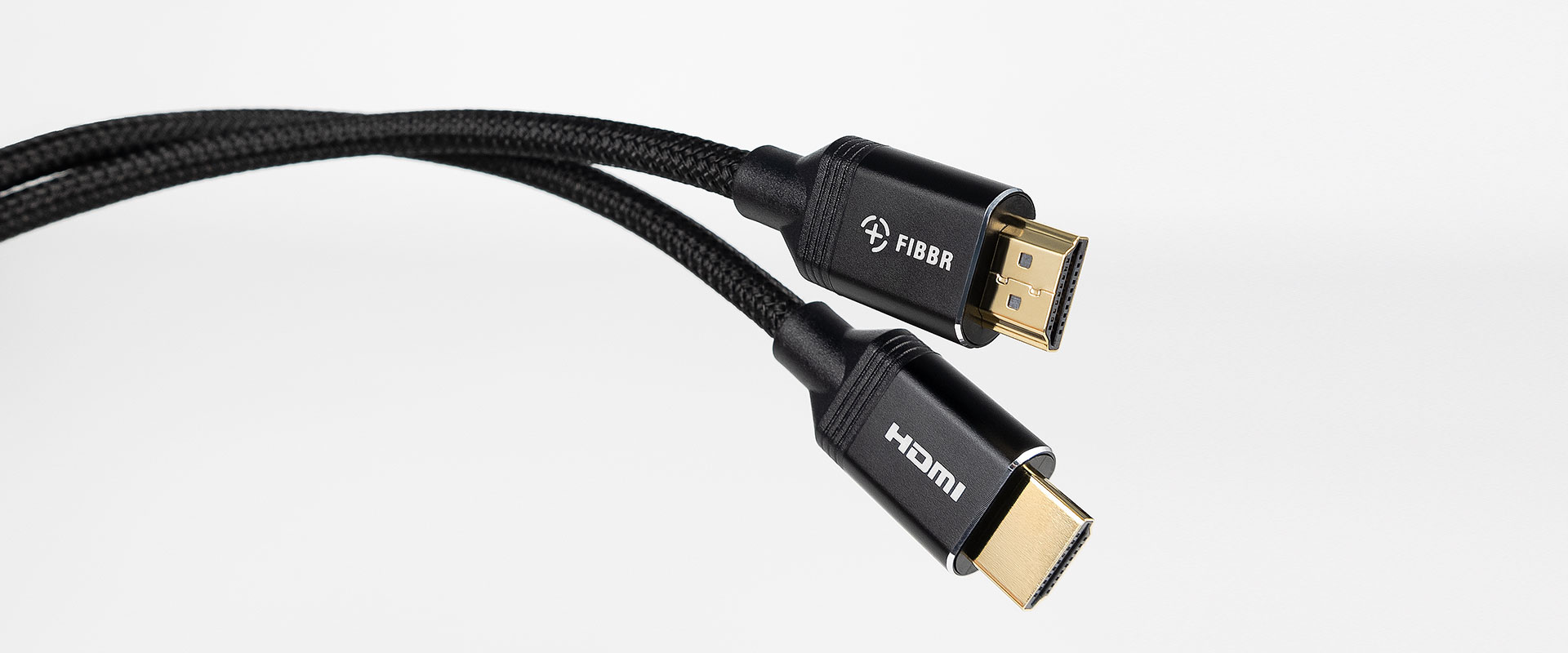

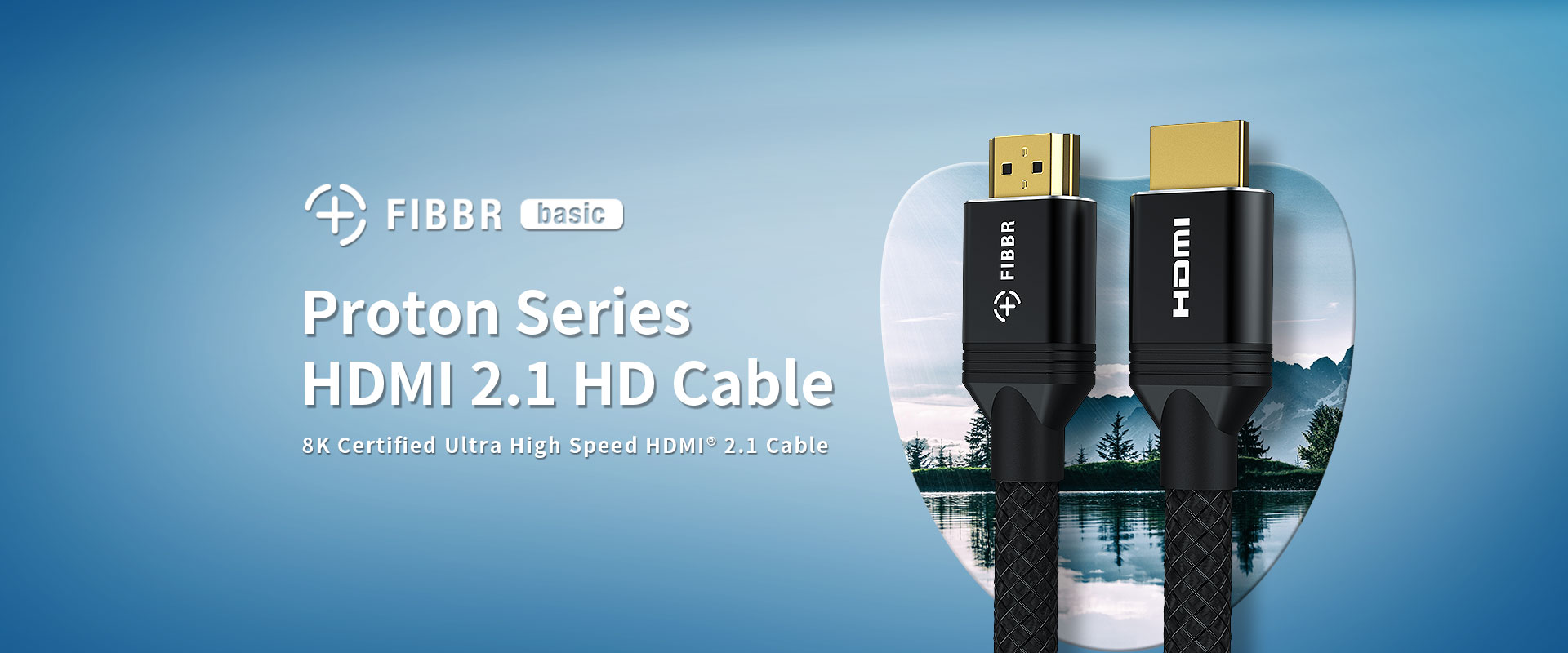

Proton 8K HDMI HD Cable

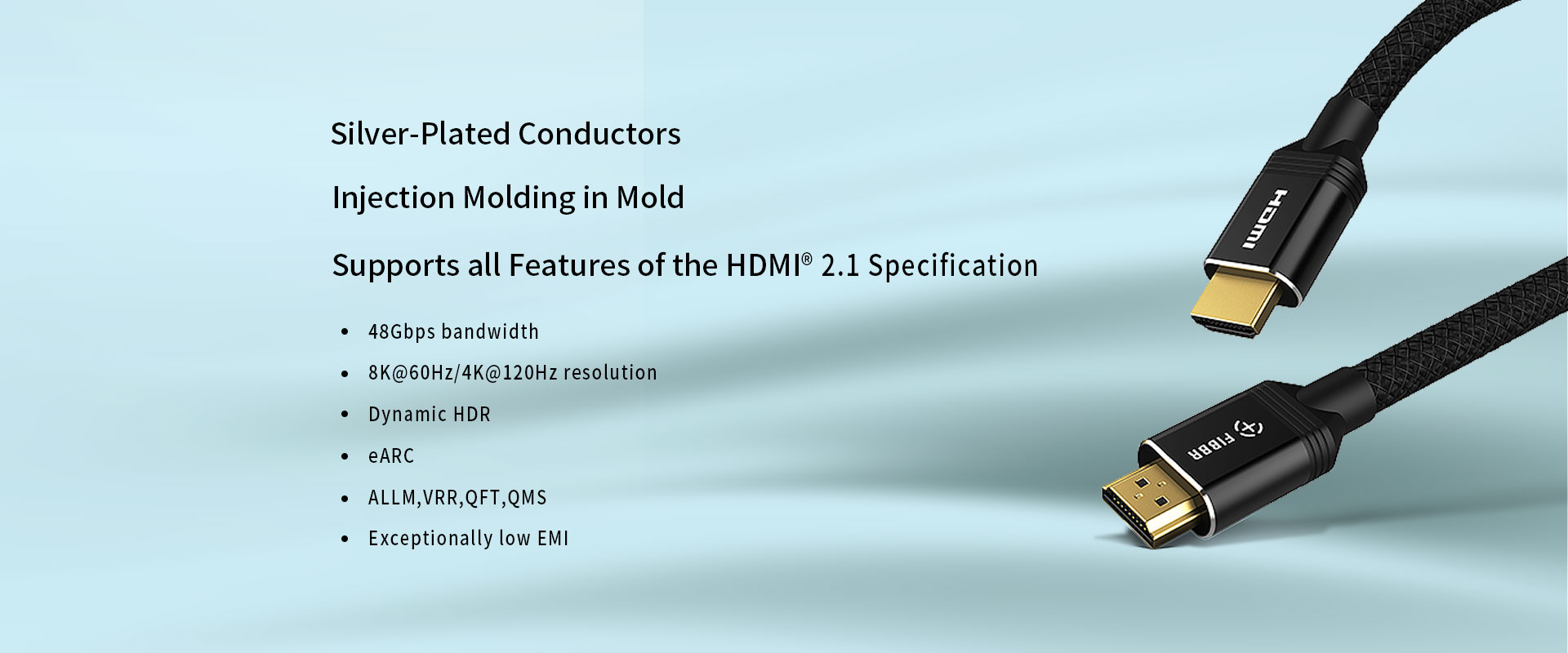

Follow the 8K HDMI specification, support HDR, Dolby Vision and other high dynamic range, support 10Bit and 12Bit high color depth. Support eARC, ALLM, VRR, QFT, QMS and other functions, provide the ultimate video experience. Certified by the HDMI® Licensing Administrator to ensure the quality.

Purchase Channels

  • Patter
    F-H3M-BST8K
  • Industry Standard
    Supports 8K@60Hz as specified in HDMI 2.1
  • Interface
    HDMI type-A to type-A
  • Length
    1 / 2 / 3m
  • Bandwidth
    48Gbps
  • Resolution
    8K@60Hz、4K@144Hz and 10K@120Hz DSC UHD display
  • Power
    No external power supply needed
  • Cable Diameter
    1/2m:6.5±0.2mm ; 3m:7.3±0.2mm
  • Connector Material
    Black aluminum alloy
  • Fiber/Copper Wire Spec
    19 copper wires
  • Outer Jacket
    PVC+nylon braided
  • Wire spec
    3M:28AWG 1-2M:30AWG
  • On-Resistance
    ≤3Ω
  • High-Voltage Insulation Test
    AC200V/10ms,≤1mA
  • Insulation impedance
    DC300V/10ms,≥5MΩ
  • Relative Humidity
    5% to 90% (non-condensing)
  • Operating Temperature
    0°C to 50°C
  • Storage Temperature
    -20°C to 70°C
  • Gross Weight (g)
    1M:73G 2M:130G 3M:210G
